Top 5 Reasons Your AC Capacitor Fails (And How to Prevent It in 2026)

🔧 Top 5 Reasons Your AC Capacitor Fails (And How to Prevent It)

Air conditioner capacitors play a critical role in starting and running motors. However, many HVAC systems fail prematurely due to capacitor issues. Understanding why capacitors fail can help you reduce maintenance costs and extend equipment life.

In this guide, we’ll break down the top 5 causes of AC capacitor failure and how to prevent them.

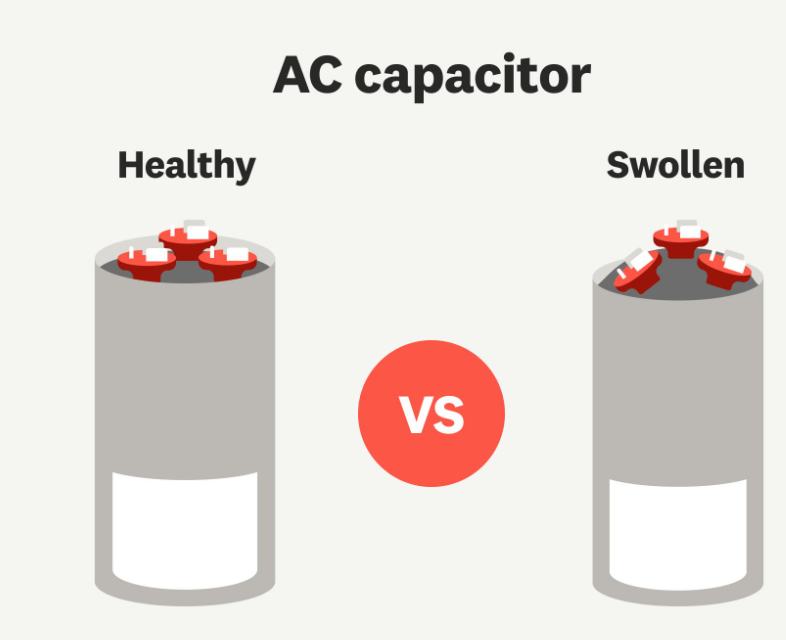

🌡️  1. Overheating (High Temperature Exposure)

High temperature is one of the most common reasons for capacitor failure. When exposed to continuous heat, the internal dielectric material begins to break down.

Why it happens:

• Poor ventilation inside AC units
• High ambient temperature (especially in Middle East, Pakistan)
• Long running hours

Result:

• Capacitor bulging
• Oil leakage
• Reduced capacitance

✅ How to prevent:

• Use high-temperature rated capacitors (85°C or higher)
• Ensure proper airflow inside the unit

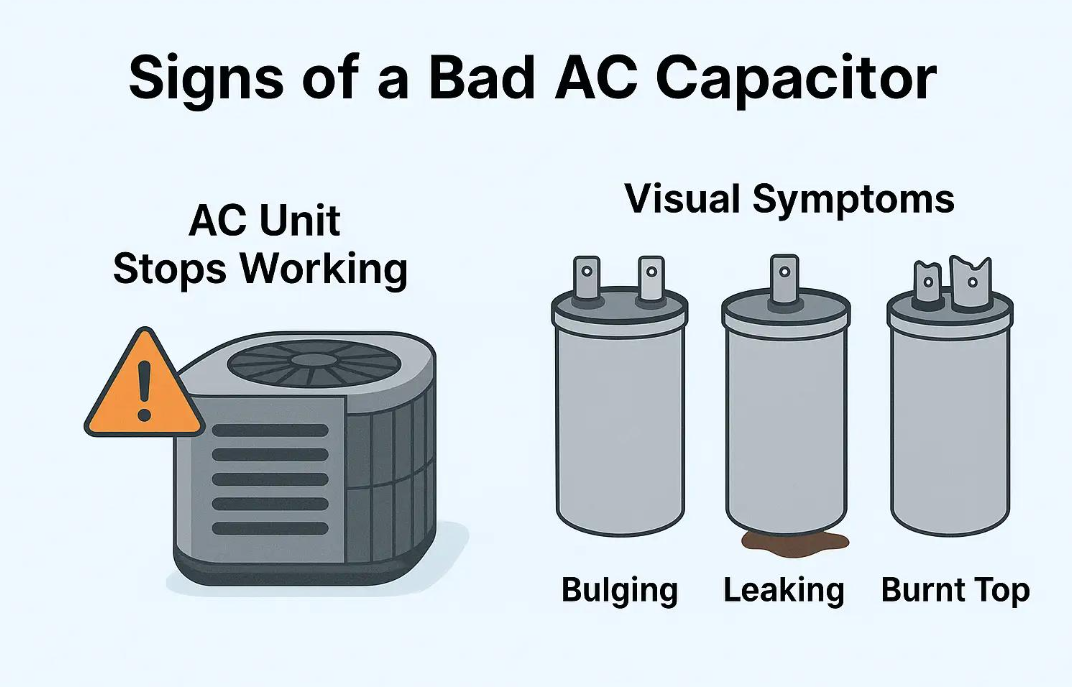

⚡ 2. Voltage Fluctuation & Power Surges

Unstable voltage can severely damage capacitors. Overvoltage stresses the internal structure and shortens lifespan.

Why it happens:

• Unstable power grids
• Generator switching
• Poor electrical design

Result:

• Internal breakdown
• Sudden failure
• Reduced efficiency

✅ How to prevent:

• Choose 450VAC instead of 370VAC capacitors when possible
• Use surge protection devices

3. Aging & Natural Wear

Even under normal conditions, capacitors degrade over time.

Typical lifespan:

• Standard capacitors: 1 years
• High-quality film capacitors: 3–5+ years

Why it fails:

• Dielectric material aging
• Internal resistance increase

✅ How to prevent:

• Regular inspection
• Replace before failure
• Choose long-life capacitors with 5-year warranty

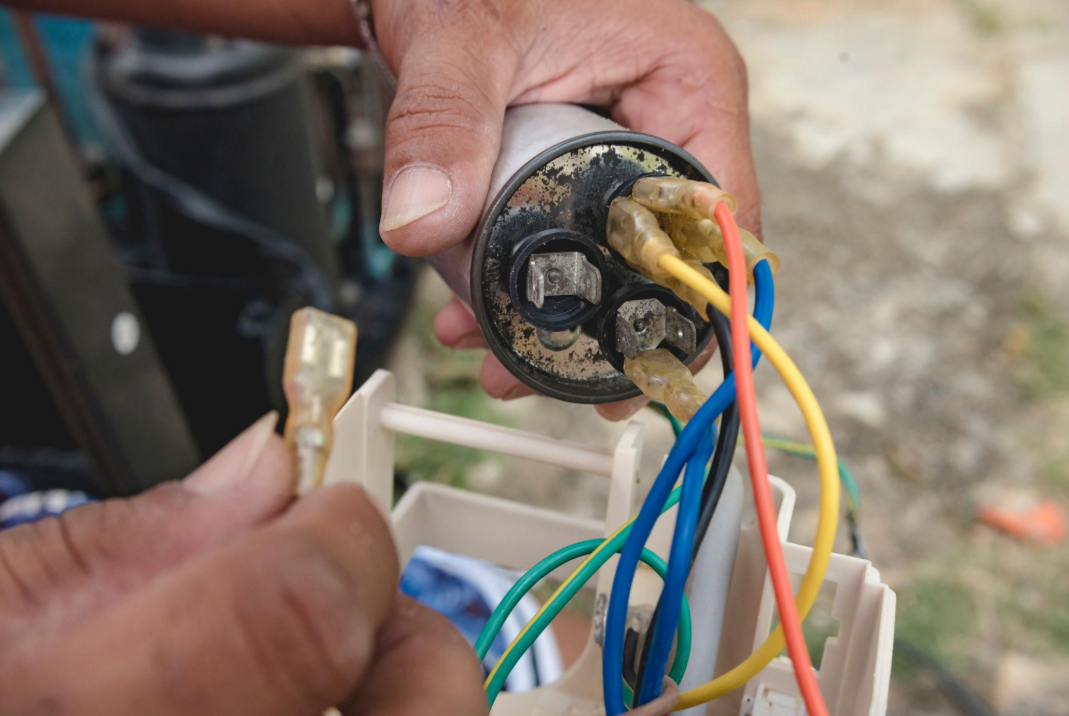

🔌 4. Incorrect Capacitor Selection

Using the wrong capacitor is a hidden but serious issue.

Common mistakes:

• Wrong µF rating
• Incorrect voltage
• Using single instead of dual capacitor

Result:

• Motor overheating
• Reduced efficiency
• System failure

✅ How to prevent:

• Always match exact µF rating
• Confirm voltage compatibility
• Follow manufacturer specs

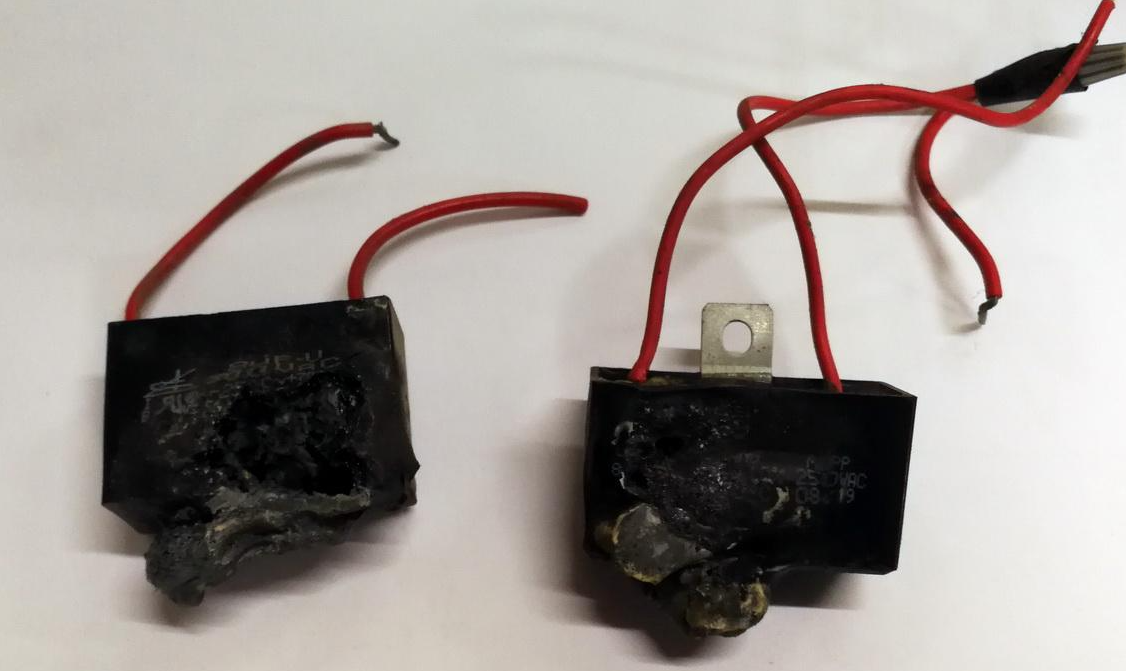

💧 5. Poor Quality or Low-Grade Materials

Not all capacitors are built the same. Low-cost capacitors often fail much earlier.

Issues with low-quality capacitors:

• Thin film material
• Poor sealing
• Weak terminals

Result:

• Early failure (within 1–2 years)
• Safety risks

✅ How to prevent:

• Choose reliable manufacturers
• Look for certifications
• Use capacitors with stable supply and warranty

🚀 How to Choose a More Durable AC Capacitor

To reduce failure rates, always look for:

• ✔ Polypropylene film capacitors (CBB60 / CBB61)
• ✔ 450VAC rating
• ✔ High temperature resistance (≥85°C)
• ✔ Strong sealing structure

• ✔ 5-year warranty support

📩 Final Thoughts

Capacitor failure is one of the most common causes of air conditioner breakdowns—but it’s also one of the easiest to prevent.

By choosing the right capacitor and ensuring proper usage conditions, you can significantly improve system reliability and reduce maintenance costs.

👉 If you are looking for stable quality capacitors with long lifespan and 5-year warranty, feel free to contact us for more details.
